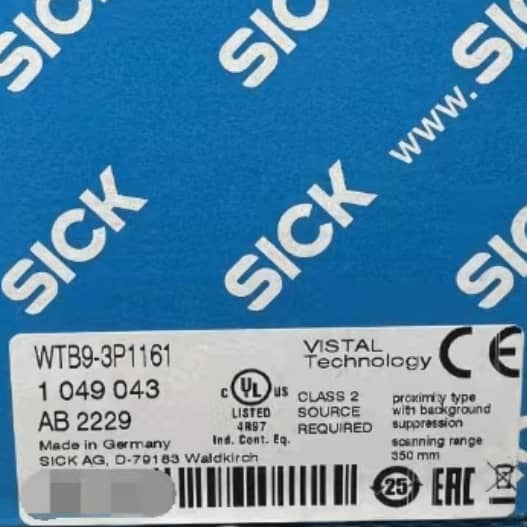

Sick WTB9-3P1161 1049043 Photoelectric Sensor W9
| Functional principle | Photoelectric proximity sensor |
| Functional principle detail | Background suppression |
| Dimensions (W x H x D) | 12.2 mm x 50 mm x 23.6 mm |
| Housing design (light emission) | Rectangular |
| Mounting hole | M3 |
| Sensing range max. | 20 mm … 350 mm 1) |
| Sensing range | 20 mm … 200 mm 2) |
| Type of light | Visible red light |
| Light source | PinPoint LED 3) |
| Light spot size (distance) | Ø 4.5 mm (75 mm) |
| Wave length | 650 nm |
| Adjustment | Potentiometer, 5 turns |
