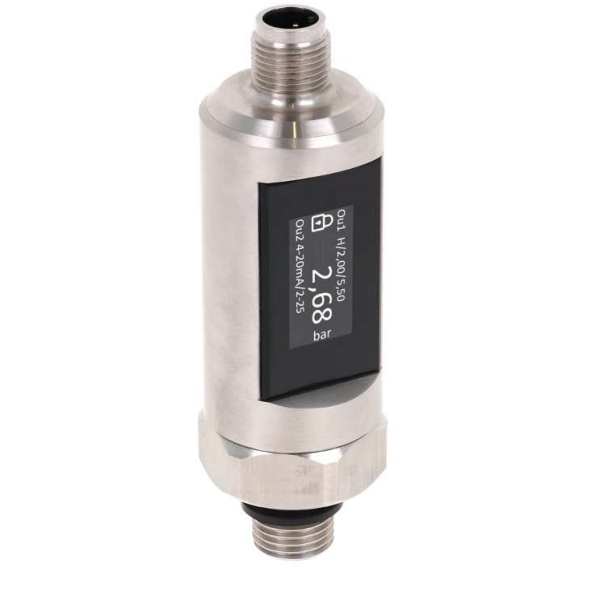

R412028728 Aventics PE7 Pressure Sensors

R412028728 Aventics PE7 Pressure Sensors

Technical information
Industry: Industrial
Output signal: PNP, NPN, push-pull, 1x IO-Link, 0 – 10 V DC, 4 – 20 mA
Type: electronic
Type: with sensor element based on piezo resistance
Operating pressure: 0 bar – 25 bar
Switching logic: NO/NC (adjustable)
Hysteresis: adjustable
Measurement: Relative pressure
Display: OLED
Units displayed: bar, psi, kPa, MPa, mmHg, mmH2O, %
Compressed air connection: G 1/4
Compressed air connection type: External thread
Medium temperature: -25 °C ~ 80 °C
Medium: Compressed air
Neutral: gases
Hydraulic: oil
Neutral: liquids
