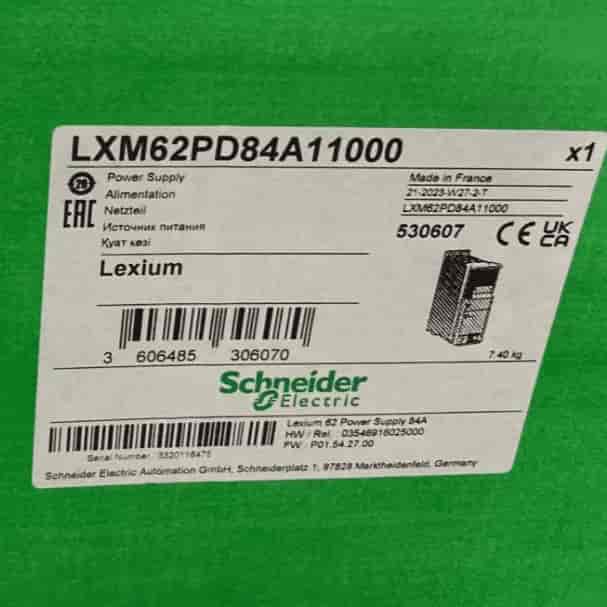

LXM62PD84A11000 Schneider Lexium LXM 62 Power Supply Drive
This product is part of the PacDrive 3 range, an offer of power supplies for integrated drives. The power supply module features SERCOS III communication interface. It offers 2 relay outputs for volt-free contacts. It is a power supply module with a rated supply voltage of 400V three phase, 230V single/three phase and a rated supply current of 21A single phase, 42A three phase AC.
| Range of Product | PacDrive 3 |
|---|---|
| Product or Component Type | Power supply |
| Component name | LXM62 |
| Supply circuit type | AC |
|---|---|
| [Us] rated supply voltage | 400 V three phase – 10…10 %) 230 V three phase – 10…10 %) 230 V single phase – 10…10 %) |
| Supply frequency | 50/60 Hz +/- 5 % |
| [Uc] control circuit voltage | 24 V DC – 20…25 %) |
| Power supply output current | 84 A |
| Bus voltage | 270…700 V |
| Maximum DC bus voltage | 860 V |
| Maximum cable capacity | 1.36 mF |
| Line Rated Current | 21 A single phase AC 42 A three phase AC |
| Peak current | 42 A single phase AC 1 s 84 A three phase AC 1 s |
| Nominal power | 22.1 kW 400 V three phase AC 26.6 kW 480 V three phase AC |
| Maximum power | 44.2 kW 400 V three phase AC 53.2 kW 480 V three phase AC |
| Holding time | 15 min |
| Braking resistance | 15 Ohm |
| Permanent braking power | 400 W |
| Maximum braking power | 46 kW |
| Output type | 2 relays volt-free contacts |
