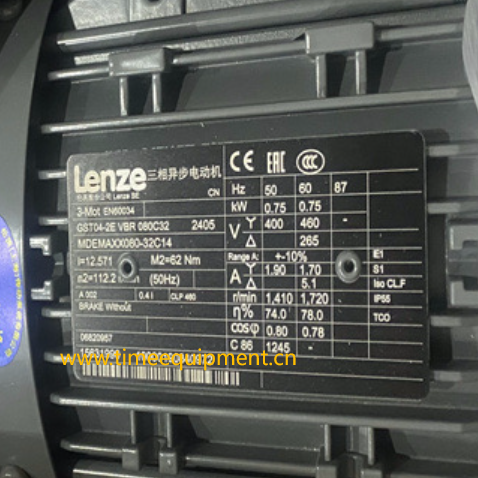

Lenze GST04-2EVBR-080C32 AC Helical Geared Motor
|
Type
|
GST04-2E VBR 080C32 |
|
Motor code
|
MDEMAXX080-32C14 |
|
Kind of motor
|
MD 3-phase AC asyn. motor |
|
Inverter type
|
E82MV751_4B |
|
Mounting on gearbox (flange)
|
Direct mounting (integr. mot.) |
|
Rated power
|
0.75 kW |
|
Rated torque
|
5.1 Nm |
|
Rated speed
|
1410 r/min |
|
Rated mains voltage
|
3~ 400 V AC |
|
Rated voltage
|
400 V +-10% star |
|
Overload capacity
|
150 % |
|
Rated current
|
1,9 A |
|
Rated frequency
|
50 Hz |
|
Power factor
|
0.8 |
|
Ratio
|
12.571 |
|
Output speed
|
112.2 r/min |
|
Output torque
|
62 Nm |
|
Load capacity
|
1.12 |
|
Enclosure
|
IP55 |
|
Temperature class
|
F |
|
Operating mode
|
S1 |
|
Cooling
|
Integral fan |
|
Motor protection
|
TCO (Thermal contact, NC) |
|
Output shaft
|
V – solid shaft 20×40 mm |
|
Gearbox design
|
B-with foot without centring |
|
Flange on output side
|
R – without flange |
|
Inverter
|
In position 2 |
