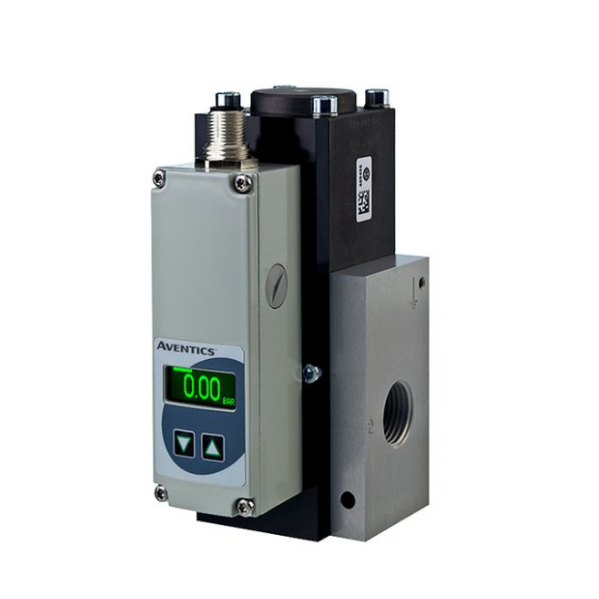

614359G101160 Aventics 614 SentronicPLUS High-Flow Proportional Control Valve
The AVENTICS Series 614 SentronicPLUS is a 3-way digitally operated proportional pressure control valve that accurately adjusts pressure, flow, force, speed, and linear or angular positions to control air and inert gas media. Its construction allows use in potentially explosive atmospheres according to ATEX Directive 2014/34/EU. The valve´s components are designed to provide control at an extremely low hysteresis.
Features
- Orifices have the same diameter for short response times whether increasing or exhausting pressure
- Intelligent digital communication enables simple operation
- Dual-loop control allows easy configuration of process variables such as flow, force, speed, RPM, and temperature
- Integrated visual display permits easy monitoring of valve status
- DaS software allows selection of personalized settings to optimize control loop performance
- Vacuum service and high-pressure up to 50 bar (725 psi) versions are available
- Integrated IO–Link communication capabilities
